Seata compatible high availability server

Seata compatible high availability server

Seata-Go-Server

Seata-Go-Server is a highly available server-side component of a distributed transaction solution compatible with Seata (after version 0.5), developed using Golang, by InfiniVision contributed to the Seata open source community.

Feature

  • High availability, fault-tolerance
  • Auto-Rebalance
  • Linear scalability
  • Strong consistent metadata storage

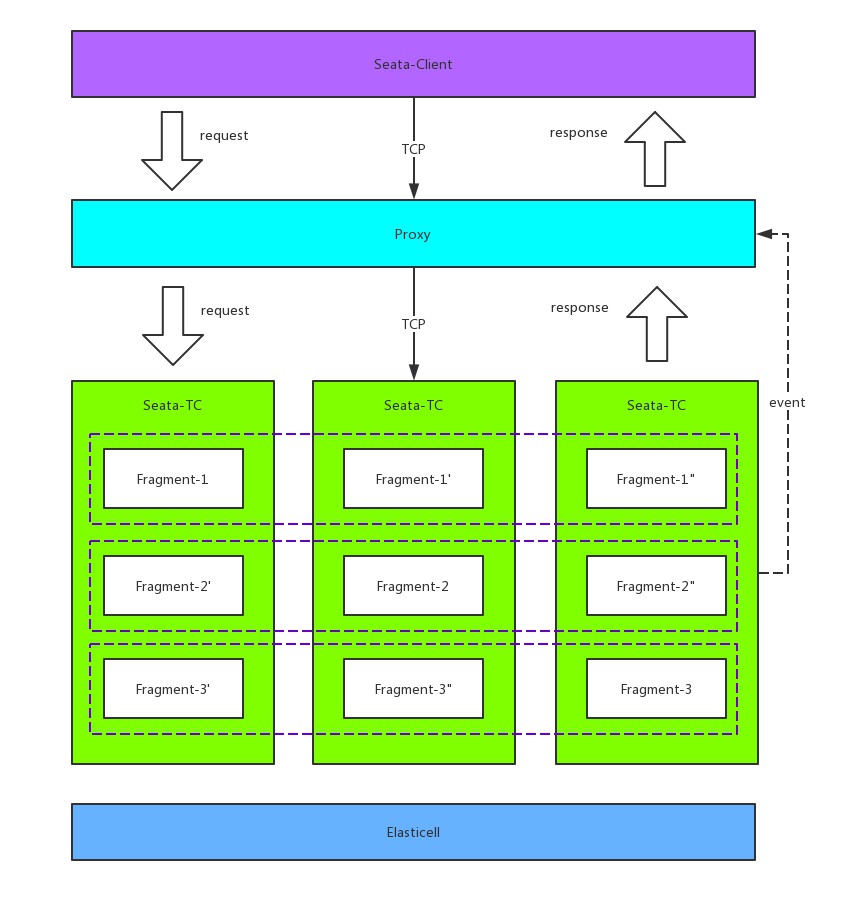

Architecture

Seata-Go-Server

Seata-TC

The transaction coordinator process, each process contains multiple Fragment

Proxy

A stateless node that provides the correct route to the outside and sends the request to the corresponding Fragment Leader node.

Elasticell

Elasticell is a distributed Key Value store with strong consistency and reliability to store the metadata.

Design

High Performance

The performance of Taas is directly proportional to the number of machines. To support this feature, the minimum unit for processing global transactions in Taas is a Fragment, which sets the number of concurrent global active transactions supported by each Fragment at startup. Taas samples each Fragment periodically according to a configurable interval, and Taas will generate a new Fragment to handle more concurrency as soon as existing system exceeds the saturation ratio, which is also configurable.

High availability

Each Fragment has multiple replication sets and a single Leader, the requests are processed by the Leader. When the Leader fails, the system will generate a new Leader to process the requests. During the election of the new Leader, the Fragment does not provide services externally---the usual interval is a few seconds.

Strong consistent

Taas itself does not store any metadata of transaction, actually they are stored withinElasticell. Elasticell is a distributed KV storage engine compatible with Redis protocol, it adopts Raft mechanism to guarantee the strong consistency.

Auto-Rebalance

As the system runs, there will be many Fragments and their copies in the system, which will result in uneven distribution of Fragment on each machine, especially when the old machine goes offline or the new machine goes online. When Taas starts, it will select 3 nodes as the scheduler, which is responsible for scheduling these Fragments to ensure that the number of Fragments and the number of Leaders on each machine are approximately equal. The scheduler will also maintain the number of replications of each Fragment at the specified amount.

Quickstart

git clone https://github.com/seata/taas.git
docker-compose up -d

Seata Service Address

The service listens by default on port 8091, modifying the server address experience corresponding to Seata.

Seata UI

Visit WEB UI http://127.0.0.1:8084/ui/index.html
